Posted on July 24, 2017

Camera improves robot vision and virtual reality

Webinars Generic Banner
A new camera that builds on technology first described by Stanford researchers more than 20 years ago could generate the kind of information-rich images that robots need to navigate the world. This camera, which generates a four dimensional image, can also capture nearly 140 degrees of information.

"We want to consider what would be the right camera for a robot that drives or delivers packages by air. We're great at making cameras for humans but do robots need to see the way humans do? Probably not," said Donald Dansereau, a postdoctoral fellow in electrical engineering.

With robotics in mind, Dansereau and Gordon Wetzstein, assistant professor of electrical engineering, along with colleagues from the University of California, San Diego have created the first-ever single-lens, wide field of view, light field camera.

As technology stands now, robots have to move around, gathering different perspectives, if they want to understand certain aspects of their environment, such as movement and material composition of different objects. This camera could allow them to gather much the same information in a single image. The researchers also see this being used in autonomous vehicles and augmented and virtual reality technologies.

"It's at the core of our field of computational photography," said Wetzstein. "It's a convergence of algorithms and optics that's facilitating unprecedented imaging systems."

Portal
From a peephole to a window
The difference between looking through a normal camera and the new design is like the difference between looking through a peephole and a window, the scientists said.

"A 2D photo is like a peephole because you can't move your head around to gain more information about depth, translucency or light scattering," Dansereau said. "Looking through a window, you can move and, as a result, identify features like shape, transparency and shininess."

That additional information comes from a type of photography called light field photography, first described in 1996 by Stanford professors Marc Levoy and Pat Hanrahan. Light field photography captures the same image as a conventional 2D camera plus information about the direction and distance of the light hitting the lens, creating what's known as a 4D image. A well-known feature of light field photography is that it allows users to refocus images after they are taken because the images include information about the light position and direction. Robots might use this to see through rain and other things that could obscure their vision.

The extremely wide field of view, which encompasses nearly a third of the circle around the camera, comes from a specially designed spherical lens. However, this lens also produced a significant hurdle: how to translate a spherical image onto a flat sensor. Previous approaches to solving this problem had been heavy and error prone, but combining the optics and fabrication expertise of UCSD and the signal processing and algorithmic expertise of Wetzstein's lab resulted in a digital solution to this problem that not only leads to the creation of these extra-wide images but enhances them.

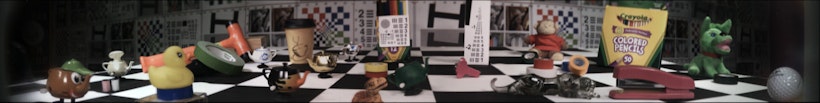

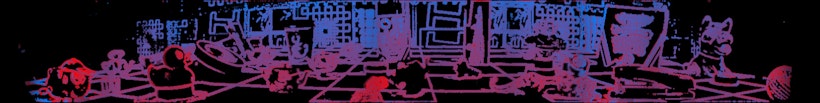

A138° light field panoramas and a depth estimate of the first panorama. (Image credit: Stanford Computational Imaging Lab and Photonic Systems Integration Laboratory at UC San Diego)
Robotics up close
This camera system's wide field of view, detailed depth information and potential compact size are all desirable features for imaging systems incorporated in wearables, robotics, autonomous vehicles and augmented and virtual reality.

"It could enable various types of artificially intelligent technology to understand how far away objects are, whether they're moving and what they've made of," said Wetzstein. "This system could be helpful in any situation where you have limited space and you want the computer to understand the entire world around it."

Although it can also work like a conventional camera at far distances, this camera is designed to improve close-up images. Examples where it would be particularly useful include robots that have to navigate through small areas, landing drones and self-driving cars. As part of an augmented or virtual reality system, its depth information could result in more seamless renderings of real scenes and support better integration between those scenes and virtual components.

The camera is currently a proof-of-concept and the team is planning to create a compact prototype next. That version would hopefully be small enough and light enough to test on a robot. A camera that humans could wear could be soon to follow.

"Many research groups are looking at what we can do with light fields but no one has great cameras. We have off-the-shelf cameras that are designed for consumer photography," said Dansereau. "This is the first example I know of a light field camera built specifically for robotics and augmented reality. I'm stoked to put it into peoples' hands and to see what they can do with it."

Source and images: Stanford University
